Mô tả sản phẩm:
Switch Contact Pressure Gauge, Euro Warning/Alarm Contact (IP65)
►Model: PRE4.H
►Vỏ Inox 304/316 Bezel bền thẩm mỹ, chất lượng cao
►Chân kết nối inox 304/316 (chân đứng, chân giữa) 1/4", 3/8", 1/2" PT, G, NPT
►Mặt size 100, size 150
►Phạm vi đo: -76 cmHg ... 1000 kg/cm2
►Cấp chính xác: CL 1.6
►Ambient temperature: chịu nhiệt max 200°C(không có dầu / chịu nhiệt max 100°C (khi có dầu)
►Contact: Switch type: Magnetic snap-action contact, Material: Silver nickel alloy
Type: Single contact N.O., Single contact N.C., Double contacts N.O.x2, Double contacts N.O.+N.C., Double contacts N.C.x2 Rated operating voltage: 380 V (Max.)
►Switch contact specifications:
Rated operating voltage: 380 V (Max.)
Switching power Max.: 30 W / 50 VA (Max.)
Switch-on current: 1.0 A (Max.)
Switch-off current: 1.0 A (Max.)
Continuous current: 0.6 A (Max.)
►IP65
►Stainless steel bezel with glass window, beautiful but still durable
►A variety of contact types to choose from
►Used in chemical, petroleum, metallurgy, machinery and other industries
►Same specifications as WIKA-PGS23
✔ Responsive after-sales service / Customizable / High quality / One-year warranty

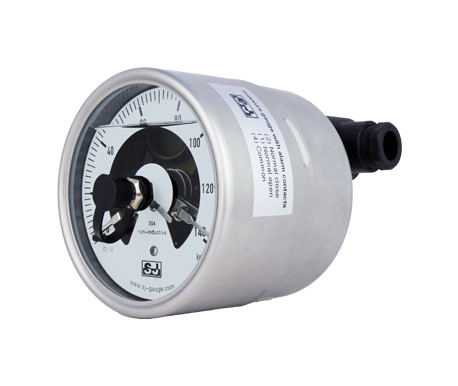

Figure 1: Type DC, adjustment lock- with removable adjustment key
Figure 2: Type TU, adjustment lock- without a key, 2.5mm slotted screwdriver required

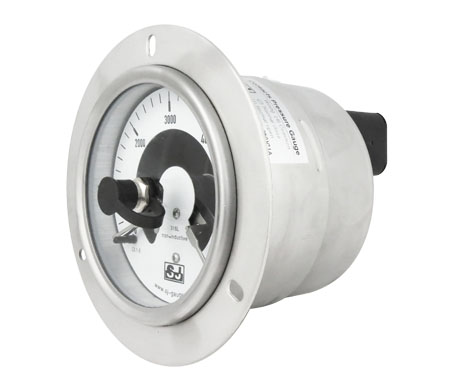

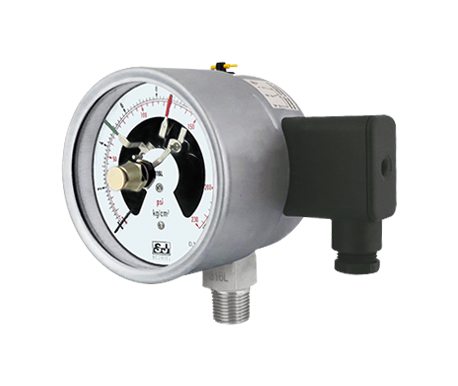

Figure 3: Lower mount

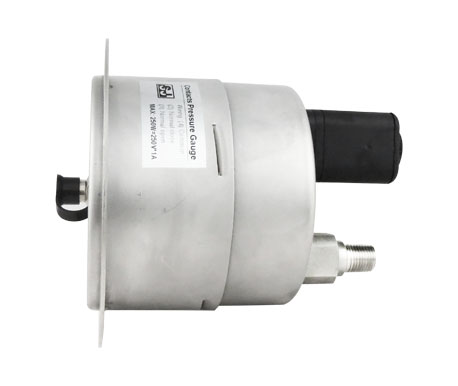

Figure 4-5: Back mount without a clamp, with a cable terminal box behind

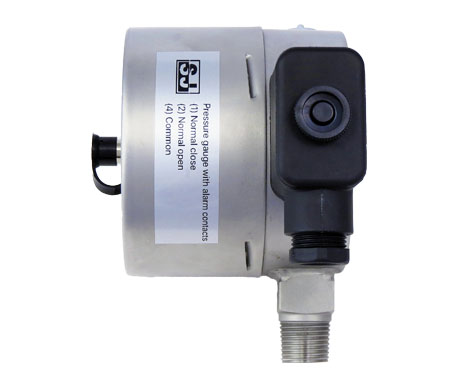

Figure 6-8: Lower mount with a clamp and a cable terminal box behind
