Mô tả sản phẩm:
►Model: PRS
►Vỏ Inox 304/316 bền thẩm mỹ, chất lượng cao
►Chân kết nối ĐỒNG (chân đứng, chân giữa) 1/8'', 1/4", 3/8", 1/2" PT, G, NPT
►Mặt size 1.5" , 2" , 2.5" , 3" , 4"
►Phạm vi đo: 0 … 1 kg/cm2 to 0 … 1000 kg/cm2
►Cấp chính xác: CL 2 / CL 1.6
Filling liquid Without, glycerine, silicone oil
Accessories 2.5", 4": adjustable set pointer
Pressure limitation Steady: full scale value
Fluctuating: 0.9 x full scale value
Ambient temperature:
-40°C … 60°C (unfilled or silicone oil filled)
-20°C … 60°C (glycerine filled)
Medium temperature:
60°C maximum
►For liquid or gaseous pressure media that will not attack copper alloy parts
►Prepared for liquid filling for applications with high dynamic pressure loads or vibrations
►Suitable for pumps, compressors, hydraulics or other indoor and outdoor applications
✔ Responsive after-sales service / Customizable / High quality / One-year warranty
Figure 1: Bottom mount

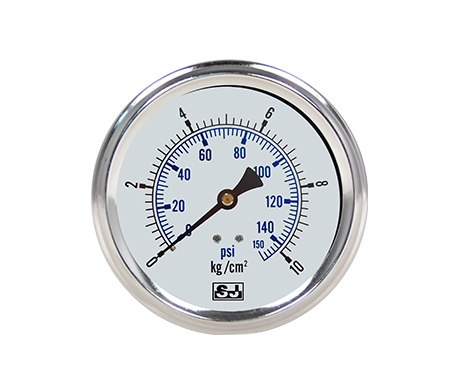

Figure 2: Center back mount without flange

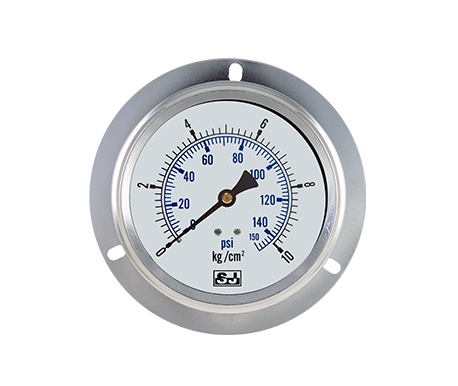

Figure 3: Center back mount with flange

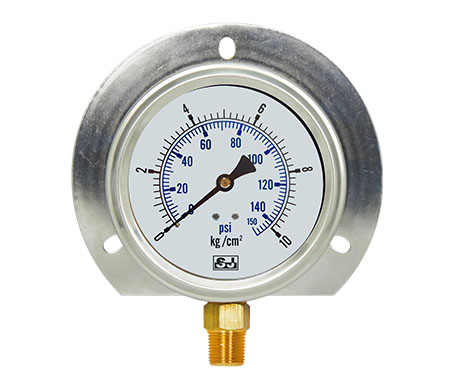

Figure 4: Bottom mount with flange
Figure 5: Center back mount with U-clamp
