Mô tả sản phẩm:
►Model: PRSS
►Vỏ Inox 304/316 bền thẩm mỹ, chất lượng cao
►Chân kết nối inox 304/316 (chân đứng, chân giữa) 1/8'', 1/4", 3/8", 1/2" PT, G, NPT
►Mặt size 2.5", 3", 4"
►Phạm vi đo: 0 … 1 kg/cm2 to 0 … 1000 kg/cm2
►Cấp chính xác: CL 1.6
Filling liquid Without, glycerine, silicone oil
Accessories 2.5", 4": adjustable set pointer
Pressure limitation Steady: full scale value
Fluctuating: 0.9 x full scale value
Ambient temperature:
-40°C … 60°C (unfilled or silicone oil filled)
-20°C … 60°C (glycerine filled)
Medium temperature:
-40°C … 150°C (unfilled)
-20°C … 100°C (glycerine filled)
-40°C … 100°C (silicone oil filled)
►For gaseous and liquid pressure media that are not highly viscous or crystallizing
►Liquid filled type available to avoid hard observation from pointer vibration
►Ideal for food and beverage, or other process engineering industries
✔ Responsive after-sales service / Customizable / High quality / One-year warranty

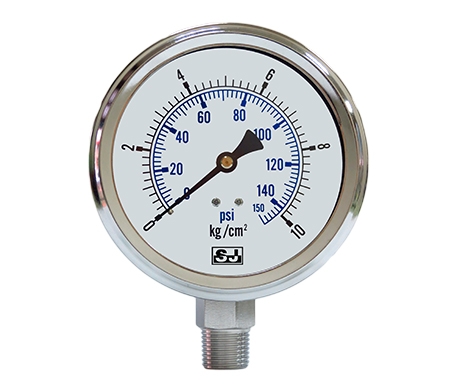

Figure 1: Bottom mount
Figure 2: Center back mount without flange

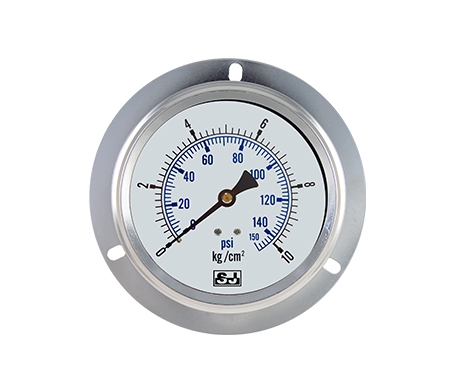

Figure 3: Center back mount with flange

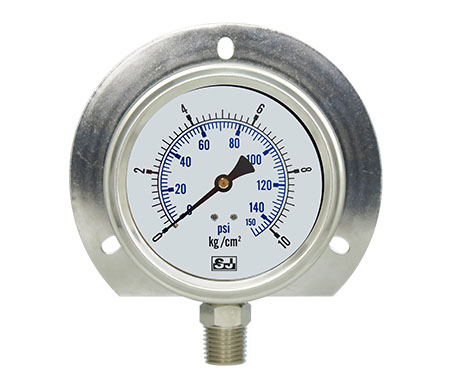

Figure 4: Bottom mount with flange
Figure 5: Center back mount with U-clamp
