ĐỒNG HỒ ĐO LƯU LƯỢNG RIELS ITALIA

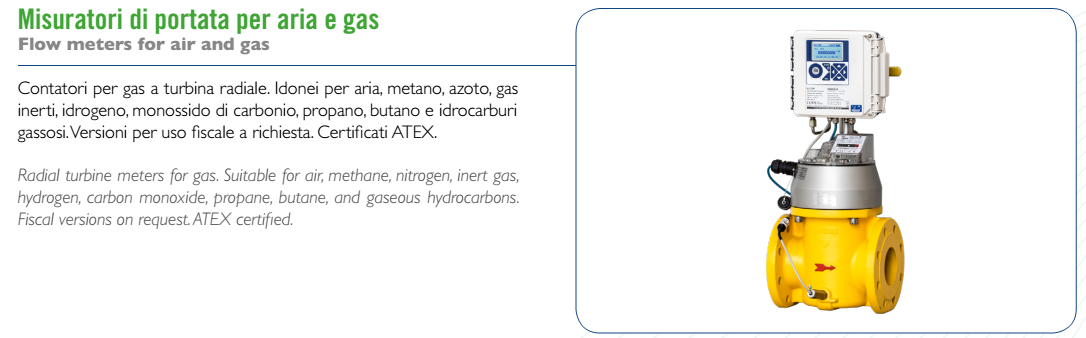

ĐỒNG HỒ ĐO LƯU LƯỢNG KHÔNG KHÍ & KHÍ ĐỐT TRZ Volumetric meters-RIELS


Mã sản phẩm:TRZ RIELS
Giá bán: Liên hệ

Mô tả sản phẩm:

  • Model: TRZ - Thương Hiệu RIELS -  Italia Ý
  • Measuring principle radial turbine
  • Measuring range  3÷650 m³/h as a function of the diameter
  • Output signal pulses low medium and high frequency
  • Process connection  Flanged DN 50 - 80 - 100; Threaded G 1½" - G 2"
  • Temperature up to 60°C
  • Pressure max 6 bar
  • MID approved
  • CQ CO: chứng chỉ test riêng được cấp theo
  • Bảo hành: 12 tháng

ĐỒNG HỒ ĐO LƯU LƯỢNG KHÔNG KHÍ & KHÍ ĐỐT TRZ Volumetric meters-RIELS - MID approved

VAN AN PHATCông Ty TNHH Thương Mại & Dịch Vụ Kỹ Thuật Vạn An Phát ( VAP TECH ) đang là đại diện nhập khẩu trực tiếp thương hiệu đồng hồ đo lưu lượng RIELS Italia, hãng REILS với hơn 40 năm kinh nghiệm công nghệ trong ngành chế tạo sản xuất đồng hồ đo lưu lượng cung cấp thịnh hành bền vững  tại thị trường Châu Âu EU.

TRZ Volumetric meters - MID approved đồng hồ đo lưu lượng không khí & khí đốt có thể đáp ứng yêu cầu đo lưu lượng tỷ lệ chính xác & nhanh chóng.

Models available

  • EQZ: for internal measurements are not subject to official checks
  • EQZK: for measurements of corrosive gases (such as biogas)
  • TRZ: for paid traffic with legal verification
  • With inertia brake: for immediate stop of the turbine when the gas flow is interrupted by the activation of an automatic valve (on-off)

Technical Characteristics

Measuring principle:
  •
  • Turbine
Measuring range / adjustment:
  • 3÷650 [m³/h]
    [depending on the diameter]
Precision Class:
  • ±1,5% VFS
Outputs available:
  • Pulses
Operating temperature:
  •
  • -10÷+60 [°C]
Pressure max:
  • 6 bar
Process connection:
  • Threaded: G 1"1/2 | G 2"
    Flanged: DN50 | DN80 | DN100
Materials in contact with the media:
  • Cast iron
Approvals:
  •
  • MID Approval
  • ATEX Declaration
  • EC Declaration of Conformity
